Message Center for the Android SDK

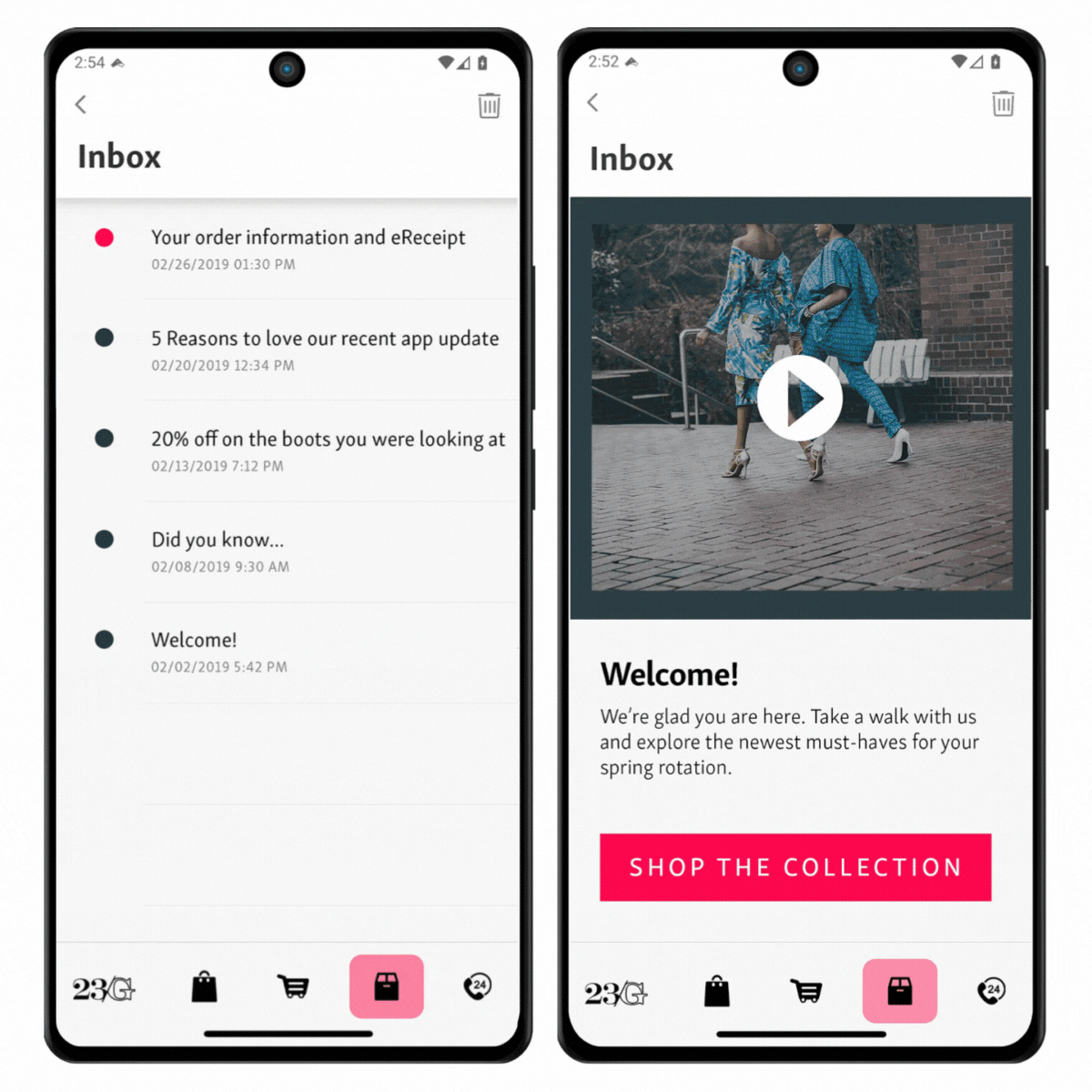

Message Center provides an inbox for rich, HTML-based messages that users can view at their convenience. By default, when your app receives a push notification with a Message Center action, the Message Center automatically displays in a modal activity.

The Message Center can also be displayed manually by calling a simple method, making it easy to add a Message Center button to your app’s navigation. Message Center inboxes are associated with channel IDs, which persist across app launches, allowing users to access their message history.

Airship provides two distinct modules for displaying Message Center on Android, depending on your app’s UI framework:

• urbanairship-message-center-compose: Provides Compose-based Message Center UI components, for apps built with Jetpack Compose.
• urbanairship-message-center: Provides XML-based Message Center UI components, for apps using traditional Android Views (XML layouts).

You should select only one module based on your UI framework—do not include both modules in the same app.

For more information about Message Center messages, see the Message Center user guide.

Installation

Include the correct module for your chosen UI framework:

dependencies {
    val airshipVersion = "androidSdkVersion"

    implementation("com.urbanairship.android:urbanairship-message-center-compose:$airshipVersion")
}

dependencies {
    val airshipVersion = "androidSdkVersion"

    implementation("com.urbanairship.android:urbanairship-message-center:$airshipVersion")
}

Display the Message Center

Display the Message Center with a single method call:

Airship.messageCenter.showMessageCenter()

MessageCenter.shared().showMessageCenter();

This displays the Message Center as a modal activity, allowing users to view and manage their messages. When the user closes the Message Center, any changes (such as marking messages as read) are automatically synced with Airship.

Applying a Custom Theme

You can customize the appearance of the Message Center to match your app’s style. Android supports theme customization through both Jetpack Compose and XML Views.

// Configure Message Center Theme
val messageCenterTheme = MessageCenterTheme(
    lightColors = MessageCenterColors.lightDefaults(
        background = Color(0xDEDEDE),
        surface = Color(0xFFFFFF),
        accent = Color(0x6200EE),
    ),
    darkColors = MessageCenterColors.darkDefaults(
        background = Color(0x121212),
        surface = Color(0x1E1E1E),
        accent = Color(0xBB86FC),
    ),
    typography = MessageCenterTypography.defaults(
        fontFamily = FontFamily(context.resources.getFont(R.font.roboto_regular))
    )
)

// Apply theme to default Message Center UI
Airship.messageCenter.theme = messageCenterTheme

<!-- Use colors from MyAppTheme instead of the default message center colors. -->
<style name="UrbanAirship.MessageCenter" parent="MyAppTheme">
  <!-- Specific attributes may also be overridden here, as needed. For example,
       the following overrides the background color used by MessageCenterFragment. -->
  <item name="android:colorBackground">@color/my_background_color</item>
</style>

Working with Messages

The Message Center provides methods to fetch, mark as read, and delete messages programmatically.

Fetch Messages

Retrieve messages from the inbox:

// Suspending call
scope.launch {
    val messages = Airship.messageCenter.inbox.getMessages()
}

// Flow
scope.launch {
    // Collect the messages flow, which emits a new list whenever the inbox is updated
    Airship.messageCenter.inbox.getMessagesFlow().collect { messages ->
        // Handle messages
    }
}

PendingResult<List<Message>> messagesResult = MessageCenter.shared().getInbox().getMessagesPendingResult();
messagesResult.addResultCallback(messages -> {
    // Handle messages
});

Listen for Message Updates

Subscribe to message updates using a listener or Flow:

// Option 1: Messages Flow
scope.launch {
    Airship.messageCenter.inbox.getMessagesFlow().collect { messages ->
        // Update your UI with the new messages
    }
}

// Option 2: InboxListener
Airship.messageCenter.inbox.addListener(object: InboxListener {
    override fun onInboxUpdated() {
        // Update your UI
    }
})

MessageCenter.shared().getInbox().addListener(() -> {
    // Update your UI
});

Listen for Unread Count Changes

Subscribe to unread count updates:

scope.launch {
    Airship.messageCenter.inbox.getUnreadCountFlow().collect { unreadCount ->
        // Update badge or UI
    }
}

MessageCenter.shared().getInbox().getUnreadCountPendingResult()
    .addResultCallback(unreadCount -> {
        // Update badge or UI
    });

Refresh Messages

Manually refresh the message list from the server:

Airship.messageCenter.inbox.fetchMessages { success ->
    // Handle result
}

MessageCenter.shared().getInbox().fetchMessages(new Inbox.FetchMessagesCallback() {
    @Override
    public void onFinished(boolean success) {
        // Handle the result
    }
});

Mark Messages as Read

Mark one or more messages as read:

Airship.messageCenter.inbox.markMessagesRead(messageId)

MessageCenter.shared().getInbox().markMessagesRead("messageId");

Delete Messages

Delete one or more messages:

Airship.messageCenter.inbox.deleteMessages("messageId")

MessageCenter.shared().getInbox().deleteMessages("messageId");

Filter Messages by Named User

By default, Message Center displays all messages sent to the device’s channel. If multiple users log into your app on the same device, they’ll all see the same messages.

To filter messages by named user, set up filtering in your custom Message Center implementation. See Message Center Filtering in the Embedding guide.

When creating Message Center messages, include a custom key with named_user_id as the key and the user’s actual ID as the value:

• For the API: Use the extra object in the Message Center object.
• In the dashboard: See Add custom keys in the Message Center content guide.

Filtering Behavior

With named user filtering enabled:

• If you target User A in a message while they are logged in, the message appears in their inbox.
• If you target User B in a message while they are logged in, the message appears in their inbox.
• If you target User A or User B while the other is logged in, the message does not appear.
• If you target User A or User B while neither is logged in, the message does not appear.
